| Place of Origin: | Suzhou, Jiangsu, CN |
| Brand Name: | UNM |
| Model Serial | AM |
| Certification: | SGS, ROSH |
| Minimum Order Quantity: | 1000m |
| Packaging Details: | Carton |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Daily output | 60000m/24h |

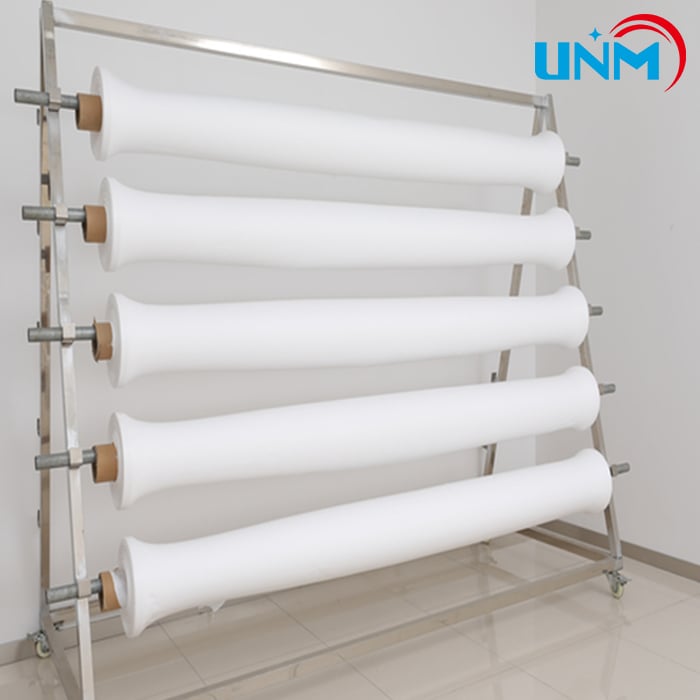

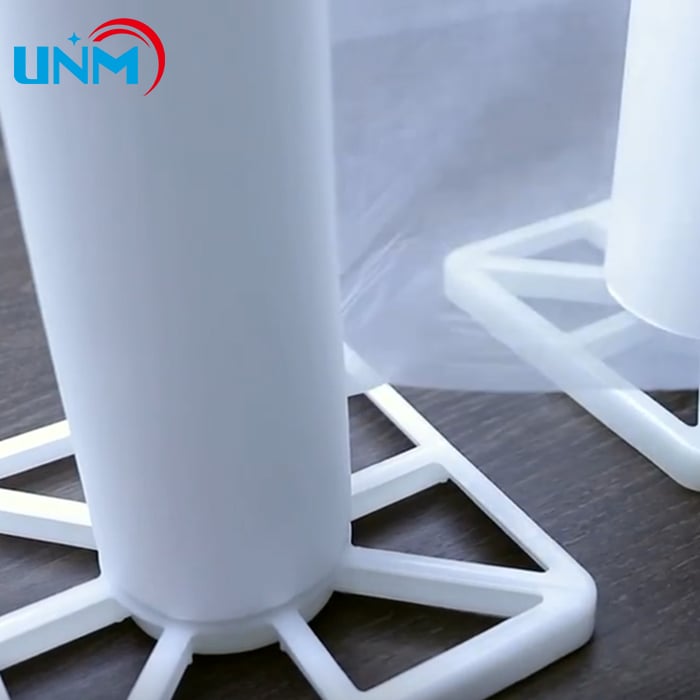

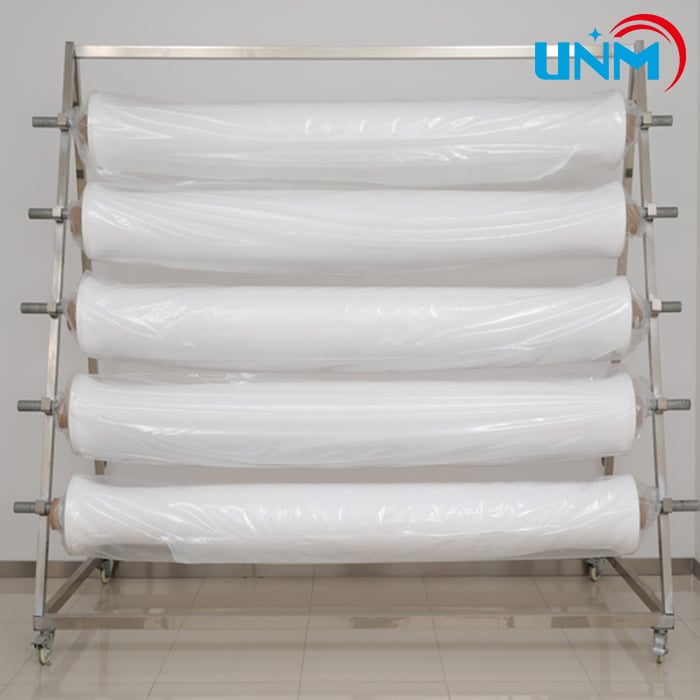

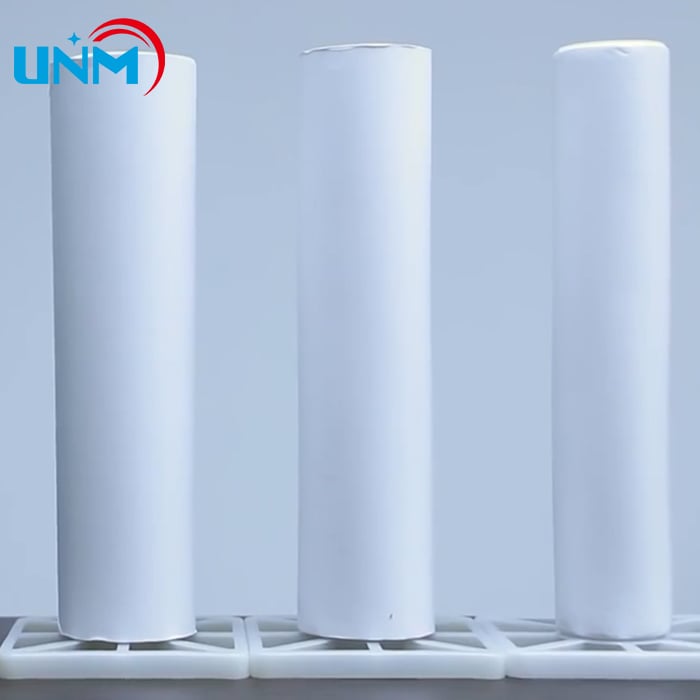

ePTFE air filter membrane has excellent high temperature resistance, chemical resistance, non-adhesive and hydrophobic properties. The microporous membrane prepared by the transverse and longitudinal stretching process has a microporous structure with interlaced nodes and fibers, and its porosity is high, with small and uniform pore size. Therefore, the UNM’s microporous membrane can obtain higher filtration efficiency under lower resistance.
ePTFE membrane, air filter membrane, PTFE membrane, PTFE filtration membrane, HEPA filter membrane, HEPA membrane filter, ePTFE film, ePTFE filter film, PTFE film.

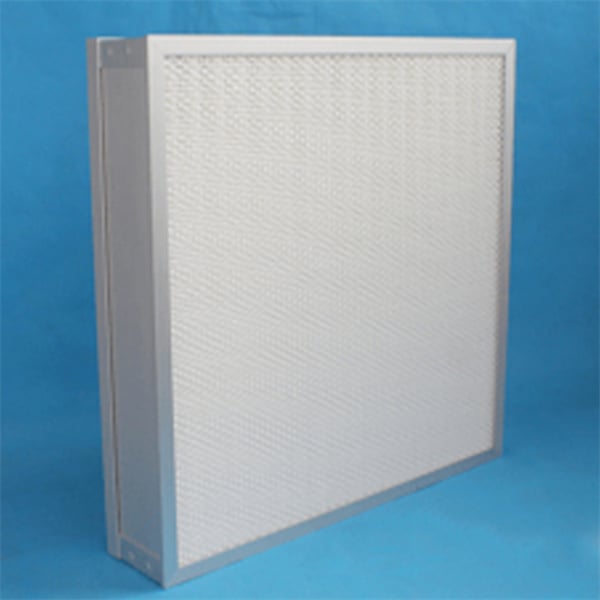

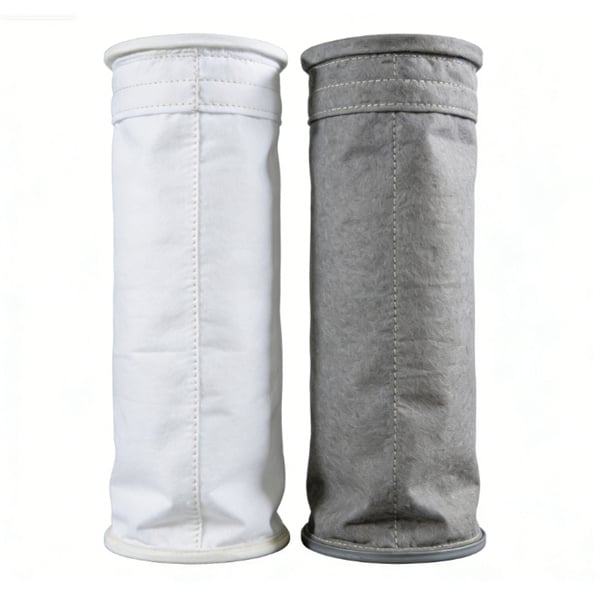

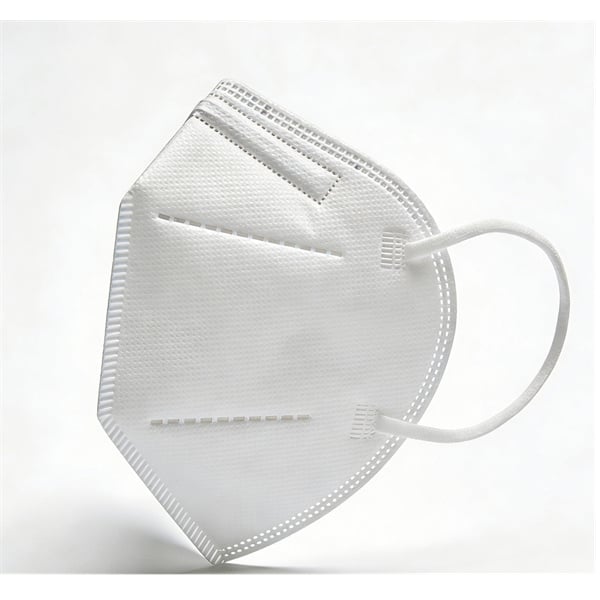

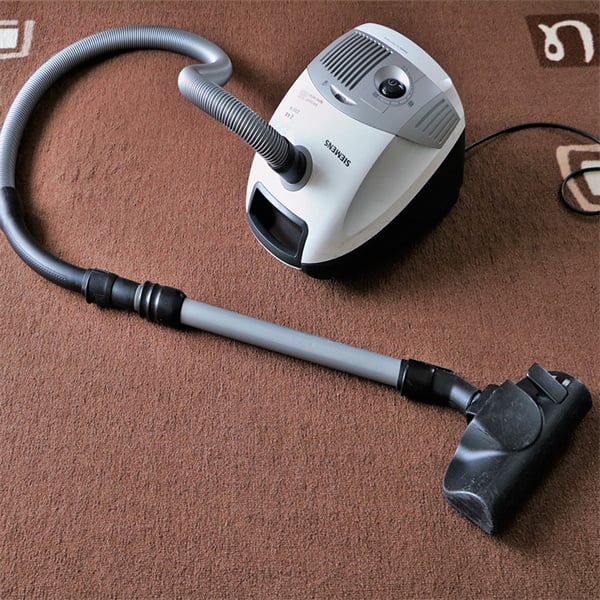

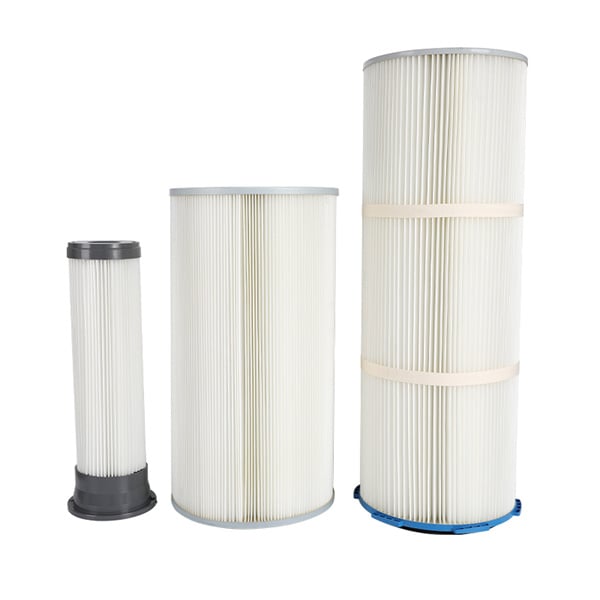

Vacuum Cleaner Filter, Clean Room Filtration, mEDICAL Mask Filtration, Dust Removal Filter Bag, Dust Removal Filter Cartridge, Other filtering Applications.
| Code No | Filter Grade | Width | Level | Air Permeability | Pressure Drop | Filtration Efficiency | Size Range |
| mm | L/㎡`s@127Pa | [email protected]/s | %@5.3cm/s | μm | |||
| AM10 | E10 | ≤2.7 | L | ≥500 | ≤14 | ≥75 | 0.3-0.5 |
| S | 300～500 | 14～22 | ≥85 | ||||
| H | 255～365 | 19～26 | ≥85 | ||||
| AM11 | E11 | ≤2.7 | L | 220～340 | 20～30 | ≥90 | 0.3-0.5 |
| S | 170～220 | 30～40 | ≥95 | ||||
| H | 135～190 | 35～50 | ≥99 | ||||
| AM12 | E12 | ≤2.7 | L | 110～170 | 40～60 | ≥99.5 | 0.3-0.5 |
| LD | 110～170 | 40～60 | ≥99.5 | ||||
| S | 85～110 | 60～80 | ≥99.9 | ||||
| SD | 75～120 | 55～90 | ≥99.9 | ||||
| H | 67～90 | 75～100 | ≥99.9 | ||||
| AM13 | H13 | ≤2.7 | L | 67～85 | 80～100 | ≥99.5 | 0.1-0.2 |
| S | 55～85 | 80～120 | ≥99.5 | ||||
| H | 40～65 | 105～155 | ≥99.5 | ||||
| AM14 | H14 | ≤2.7 | S | 35-55 | 130-180 | ≥99.95 | 0.1-0.2 |
| AM15 | U15 | ≤2.7 | S | 30-38 | 180-230 | ≥99.999 | 0.1-0.2 |
| H | 23-30 | 230-280 | ≥99.9995 | ||||
| AM16 | U16 | ≤2.7 | S | 19-25 | 270-350 | ≥99.9999 | 0.1-0.2 |
Small and uniform membrane pores with high filtration efficiency.
High porosity, high resistance to efficiency ratio, high permeability and high interception.
Stable microporous structure after high temperature heat setting treatment.
ePTFE membrane has strong hydrophobicity, low surface energy and good non-adhesion. It can be washed with water or vibrated to remove accumulated dust on the surface and restore its performance, extending its service life.
The filtration efficiency can up to 99.9999%.
