| Place of Origin: | Suzhou, Jiangsu, CN |
| Brand Name: | UNM |
| Model Serial | PM |
| Certification: | SGS, ROSH |
| Minimum Order Quantity: | 200m² |
| Packaging Details: | Carton |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Daily output | 60000m/24h |

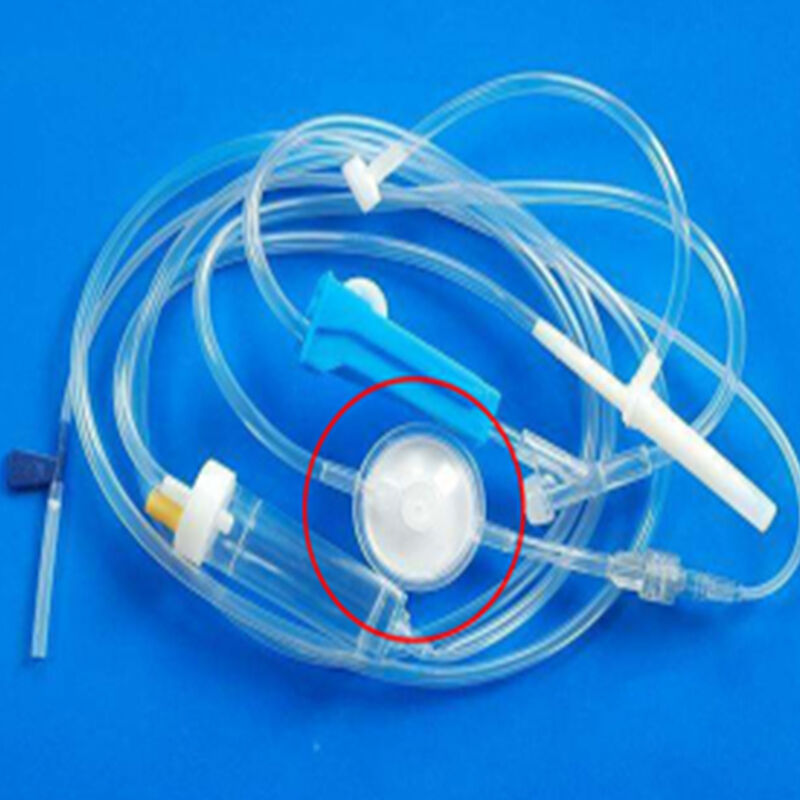

ePTFE membrane is commonly used in infusion filters, filtration of various medical liquids and venting for electrical devices. Its acid and alkali resistance characteristics, high biosatey performance effectively ensure the service life of the product. It has passed the 100% Integrity Test and can effectively intercept viruses and bacteria in the liquid. Meanwhile Its good breathable performance can effectively maintain the pressure between the inside and outside of the device. According to different precision and size requirements, it can be made into different pore size:0.05um, 0.1um, 0.22um, 0.45um, 1um, 3um, 5um, 7um.
ePTFE membrane, ePTFE membrane for liquid filtration, PTFE membrane for liquid filtration, PTFE filter membrane, PTFE film, PTFE filter film, waterproof and venting membrane, waterproof and venting media.
Liquid Filtration in Medical Industry, Waterproof and venting in Electrical Device, Wast Water filtration.
| Code No | Model | Pore Size | Width | Thickness | Flow | Bubble Point Pressure | Flow Speed |
| μm | mm | mm | ml/cm²/[email protected] | Mpa | s @0.093Mpa | ||
| PM010 | S | 0.1 | 1500 | 35-65 | ≥18 | 0.18-0.24 | ≤12 |
| T | 50-85 | ≥14.5 | 0.18-0.24 | ≤15 | |||
| PM022 | L | 0.22 | 1500 | 35-65 | ≥48.1 | 0.11-0.14 | ≤4.5 |
| S | 35-65 | ≥27.1 | 0.135-0.18 | ≤8 | |||
| ST | 50-85 | ≥21.6 | 0.135-0.18 | ≤10 | |||
| PM045 | L | 0.45 | 1500 | 30-60 | ≥72.2 | 0.06-0.09 | ≤3 |
| S | 30-60 | ≥48.1 | 0.09-0.12 | ≤4.5 | |||
| ST | 50-85 | ≥36.1 | 0.09-0.12 | ≤6 | |||
| PM100 | S | 1 | 1500 | 25-55 | ≥98.5 | 0.04-0.065 | ≤2.2 |
| SP | 25-55 | ≥120 | 0.03-0.05 | ≤1.8 | |||
| PM200 | SP | 2 | 1500 | 25-55 | ≥135 | 0.021-0.035 | ≤1.6 |
| PM300 | SP | 3 | 1500 | 25-55 | ≥154 | 0.015-0.025 | ≤1.4 |
| PM500 | SP | 5 | 1500 | 25-56 | ≥180 | 0.01-0.016 | ≤1.2 |
| PM700 | SP | 7 | 1500 | 25-57 | ≥196 | 0.006-0.011 | ≤1.1 |
High Biological Safety.
Passed the Integrity Test and reach to the requirements of HIMA bacterial interception test.
High Porosity & Uniform Pore Distribution.
The porosity more than 85% and the pore distributed uniform, it can ensure intercept all the bacterial and other impurities.
High Filtration Precision.
Controllable filtration precision, can intercept impurities such as bacteria.
The pore size can made from 0.05um to 7um.
