| Locus Originis: | Suzhou, Jiangsu, CN |
| Nomen Notae: | UNM |
| Model Serial | YKF |
| Certificatio: | SGS, ROSH |
| Quantitas Ordinis Minimae: | 450m² |
| Packaging Details: | Carton |
| Tempus traditionis: | 7-15dies |
| Termini solucionis: | T/T |
| Dies expletio | 60000m/24h |

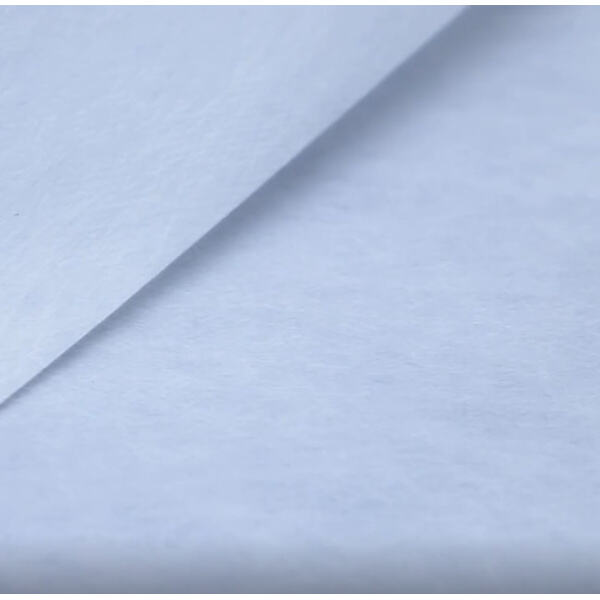

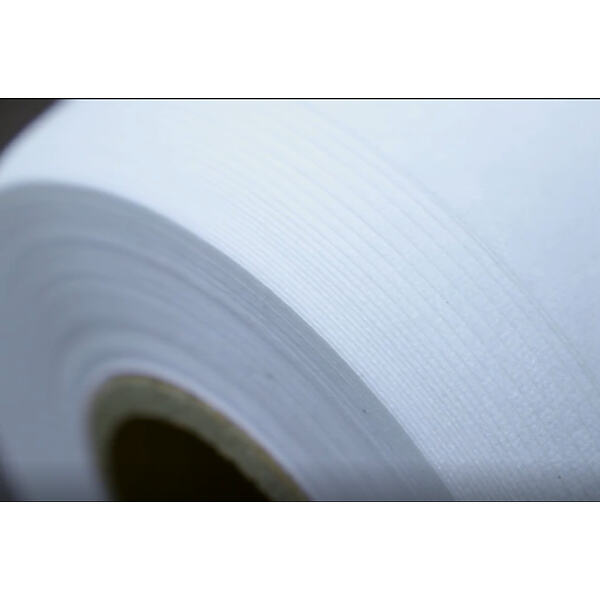

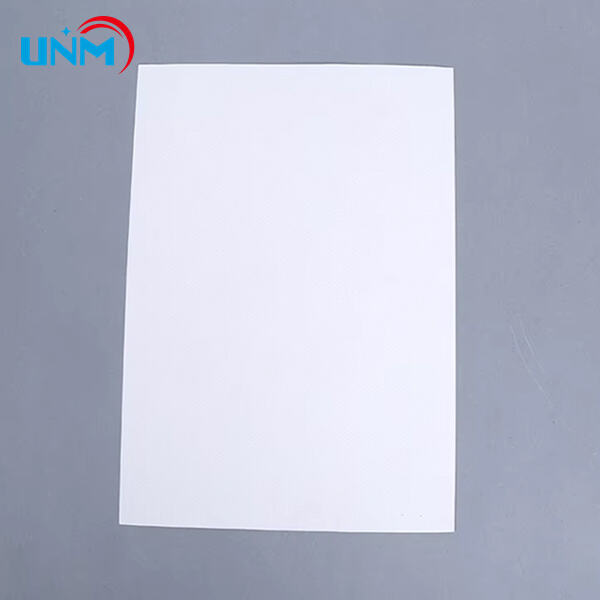

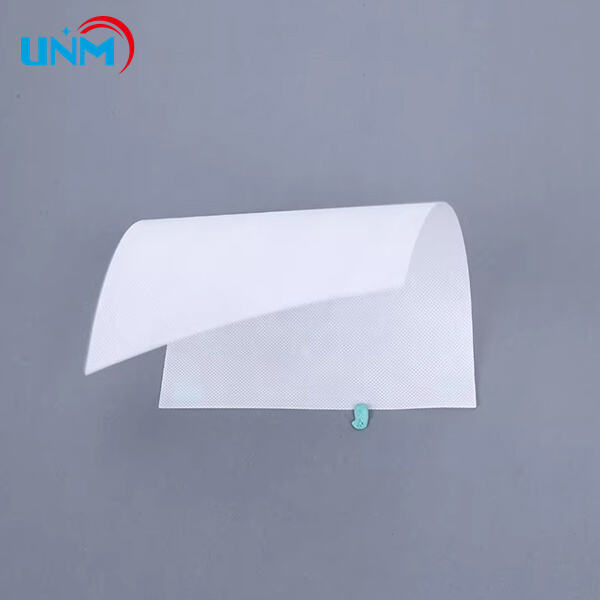

Medium filtrum ePTFE cum alto PHC (PAO Holding Capacity) independentiter inventum a UNM et consecutum per laminatorem thermicum membranae microporosae ePTFE et textilis importati. Haec series gradus filtrationis ab H13 ad U16, et productum cum minima resistentia venti et minore consumptione energiae. Est latissime usitatum in variis campis, sicut industria biopharmaceutica, semiconductores fabricatio environmentalis, etc.
ePTFE filtri media, HEPA filtri media, superpositio ePTFE filtri media, PTFE filtri media, Industria pulvis remove material, aer filtri media, aer filtri charta
Locus Purus Filtratio, Ventilator Filtri Unitas, Semiconductores, LED Monistor, Industria Pulvis Remove, Domestica Apparatura.
| Numerus Moduli. | Gradus Filtrationis | Media structura | Latus | Crassitudo | Pondus | Media Resistencia | Efficientia Filtrationis Avg. | Magnitudo Particulae |
| Strata | mm | mm | g\/㎡ | Pa @5.3cm/s | % @5.3cm/s | μm | ||
| YKF090516P2 | U16 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 310-390 | ≥99.9999 | 0.1-0.2 |
| YKF090516P | U16 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 280-360 | ≥99.9997 | 0.1-0.2 |
| YKF090515P2 | U15 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 250-310 | ≥99.9992 | 0.1-0.2 |
| YKF090515P | U15 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 230-290 | ≥99.997 | 0.1-0.2 |
| YKF090514P2 | H14 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 200-260 | ≥99.997 | 0.3-0.5 |
| YKF090514P | H14 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 180-240 | ≥99.995 | 0.3-0.5 |
| YKF090513P2 | H13 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 150-210 | ≥99.97 | 0.3-0.5 |
| YKF090513P | H13 | 5 | ≤1230 | 0.45±0.1 | 90±13 | 130-190 | ≥99.95 | 0.3-0.5 |
Parva resistenta venti, altum taxem interceptionis et altum PHC (PAO Capacitas Retentionis). PHC est 3-6 vicibus maius quam media filtrantia efficiens PTFE consuetudo.
Propter structuram suam multilayer cascadensem, hoc productum non solum meliorem balancem inter resistenciam venti et retentionem consequitur, sed etiam magnopere capacitatem pulvis mediae filtrantis augebit et vitam usui filtrationis filiorum prolongat.
