Laminated ePTFE filter media for air filtration

laminated ePTFE filter media for air filtration

Information

Place of Origin:	Suzhou, Jiangsu, CN
Brand Name:	UNM
Model Serial	YKF
Certification:	SGS, ROSH

Minimum Order Quantity:	450m²
Packaging Details:	Carton
Delivery Time:	7-15days
Payment Terms:	T/T
Daily output	60000m/24h

Description

The laminated ePTFE filter media created a high-efficiency, hydrophobic filter medium with a filtration accuracy of up to 99.99997%, which can effectively intercept particles, water vapor and harmful gases in the air. It can fully meet the processing and purification requirements of precision electronic products such as semiconductor chips.

The air filters which made by our material can meet EN 1822-2019, GB/T 13554, ISO 29463, IEST-RP-CCOO1, etc.

Quick Detail

ePTFE filter media, HEPA filter media, laminated ePTFE filter media, PTFE filter media, Industry dust remove material, air filter media, air filter paper

Applications

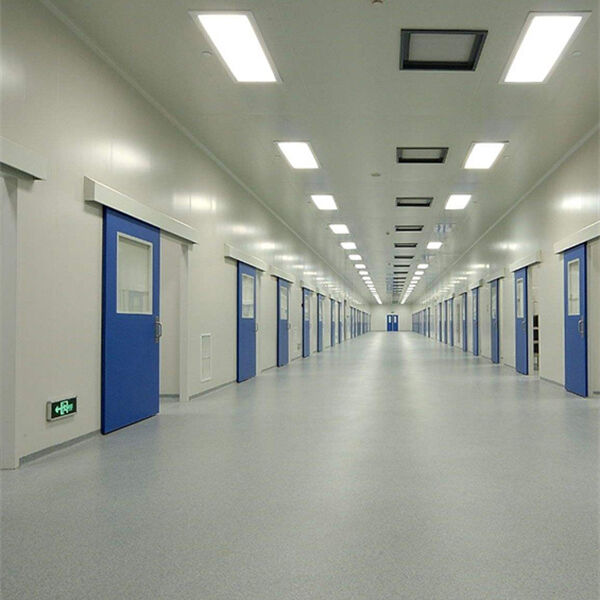

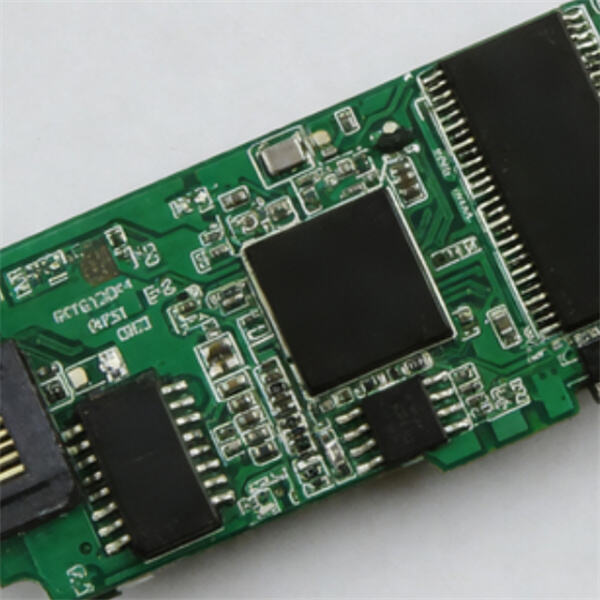

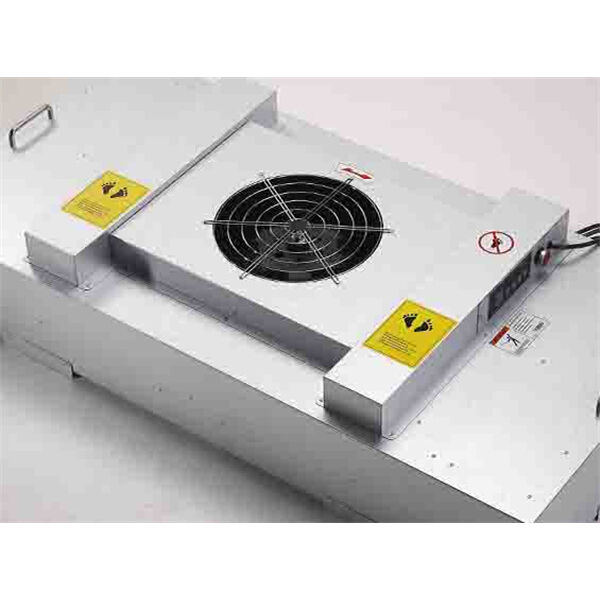

Clean Room Filtration, Fan Filter Unit, Semiconductor, LED Monistor, Industry Dust remove, Domestic Appliance.

Specifications

Code No	Filter Grade	Structure		AVE. Weight	Thickness	Pressure Drop	Filtration Efficiency	Size Range
		Layer	Non--woven	g/㎡	mm	[email protected]/s	%	μm
YKF080317S	U17	3	PET	80	0.4	310-390	≥99.99992	0.1-0.2
YKF080316H	U16	3	PET	80	0.4	270-330	≥99.9999	0.1-0.2
YKF080316S	U16	3	PET	80	0.4	240-300	≥99.9997	0.1-0.2
YKF080315H	H15	3	PET	80	0.4	220-275	≥99.999	0.1-0.2
YKF080315S	H15	3	PET	80	0.4	190-245	≥99.997	0.1-0.2
YKF080314H	H14	3	PET	80	0.4	170-220	≥99.997	0.3-0.5
YKF080314S	H14	3	PET	80	0.4	140-190	≥99.995	0.3-0.5
YKF080313H	H13	3	PET	80	0.4	125-170	≥99.97	0.3-0.5
YKF080313S	H13	3	PET	80	0.4	95-140	≥99.95	0.3-0.5
YKF080312S	E12	3	PET	80	0.4	60-100	≥99.5	0.3-0.5
YKF080311S	E11	3	PET	80	0.4	35-70	≥95	0.3-0.5
YKF080310S	E10	3	PET	80	0.4	18-45	≥85	0.3-0.5
YKF090517S	U17	5	PET	90	0.45	310-390	≥99.99992	0.1-0.2
YKF090516S	U16	5	PET	90	0.45	250-310	≥99.9997	0.1-0.2
YKF090515S	H15	5	PET	90	0.45	200-260	≥99.997	0.1-0.2
YKF090514S	H14	5	PET	90	0.45	150-210	≥99.995	0.3-0.5
YKF090513S	H13	5	PET	90	0.45	100-160	≥99.95	0.3-0.5

Competitive Advantage

Acid & Alkali Resistance.
Superior chemical resistance, superior resistance to acids (as hydrofluoric acid HF), bases and organic solvents.
High Porosity, Good Hydrophobicity & Air Permeability.
Super waterproof, superior mechanical strength and durability.
Low Wind Resistance & High Dust Holding Capacity.
This material has a multi-layer cascade structure, it can achieve a better balance between wind resistance and interception rate, and greatly increase the dust holding capacity of the filter media.
